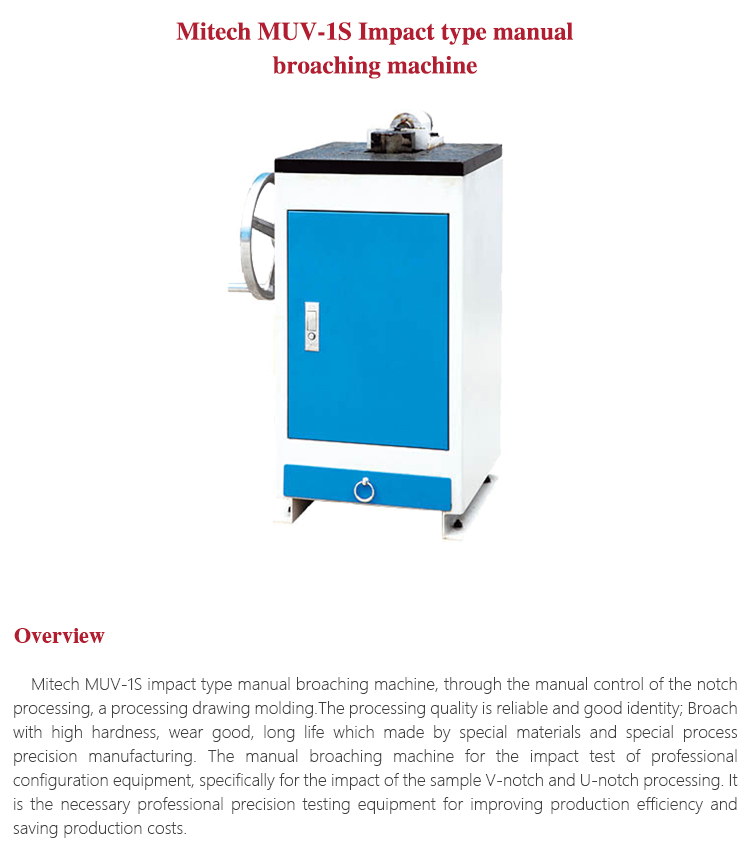

Product OverviewMitech MUV-1S impact type manual broaching machine, through the manual control of the notch processing, a processing drawing molding.The processing quality is reliable and good identity; Broach with high hardness, wear good, long life which made by special materials and special process precision manufacturing. The manual broaching machine for the impact test of professional configuration equipment, specifically for the impact of the sample V-notch and U-notch processing. It is the necessary professional precision testing equipment for improving production efficiency and saving production costs.
Function & applicationProfessional for the impact of sample V-notch and U-notch processing.
Working PrincipleWorking Conditionsl Operation Temperature:Ambient temperature～45℃；
l Relative humidity:20％～80％；
l In an environment free from vibration,corrosive medium and high magnetic field
l Installed on a flat basis.
l Power supply voltage fluctuation does not exceed 10% of rated voltage.

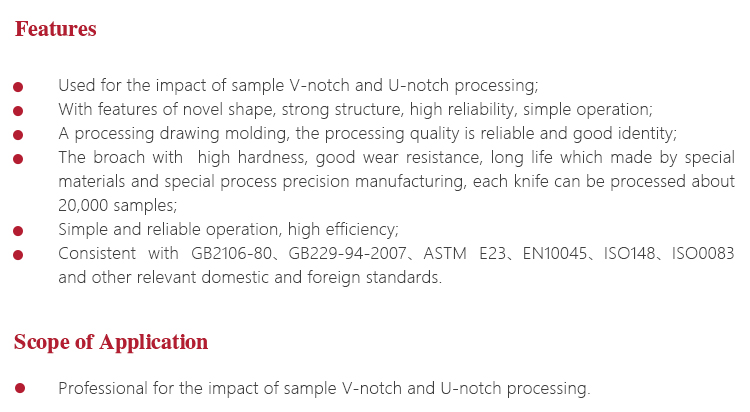

Instrument Featuresl Used for the impact of sample V-notch and U-notch processing;
l With features of novel shape, strong structure, high reliability, simple operation;
l A processing drawing molding, the processing quality is reliable and good identity;
l The broach with high hardness, good wear resistance, long life which made by special materials and special process precision
manufacturing, each knife can be processed about 20,000 samples;
l Simple and reliable operation, high efficiency;
l Consistent with GB2106-80、GB229-94-2007、ASTM E23、EN10045、ISO148、ISO0083 and other relevant domestic and
foreign standards.

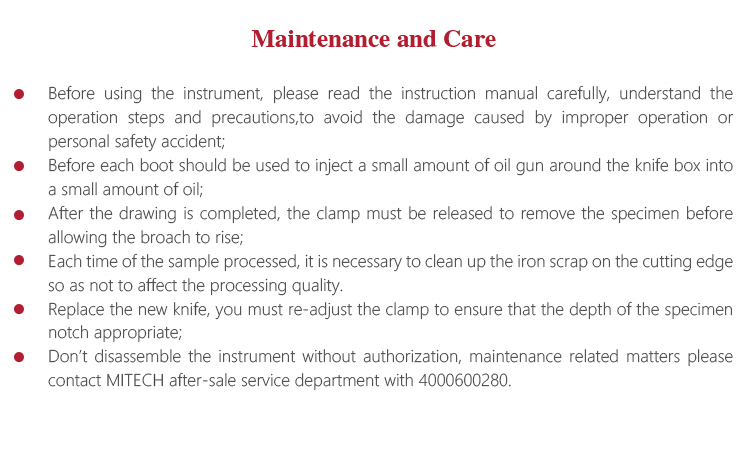

Operating Method and AttentionsInstrument Maintenancel Before using the instrument, please read the instruction manual carefully, understand the operation steps and precautions,to
avoid the damage caused by improper operation or personal safety accident;
l Before each boot should be used to inject a small amount of oil gun around the knife box into a small amount of oil;
l After the drawing is completed, the clamp must be released to remove the specimen before allowing the broach to rise;
l Each time of the sample processed, it is necessary to clean up the iron scrap on the cutting edge so as not to affect the
processing quality.
l Replace the new knife, you must re-adjust the clamp to ensure that the depth of the specimen notch appropriate;
l Don’t disassemble the instrument without authorization, maintenance related matters please contact MITECH after-sale
service department with 4000600280.
-
-

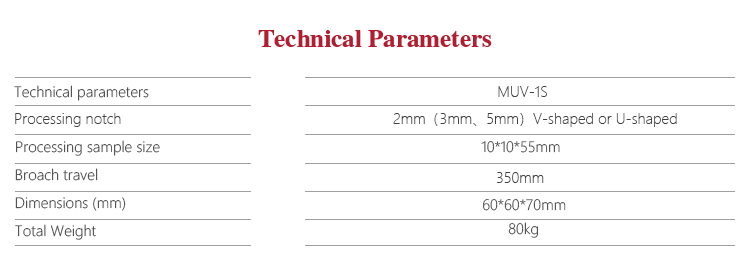

Processing notch 2mm（3mm、5mm）V-shaped or U-shaped Processing sample size 10*10*55mm Broach travel 350mm Dimensions (mm) 60*60*70mm Total Weight 80kg -
-
