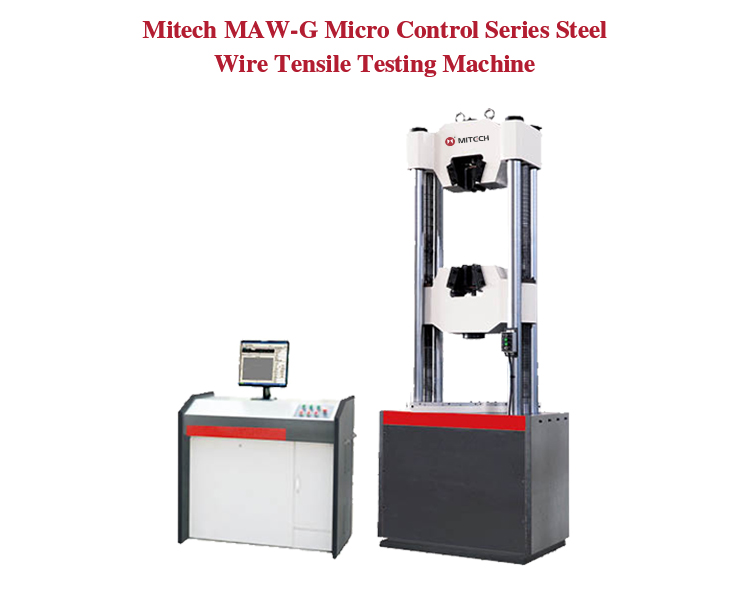

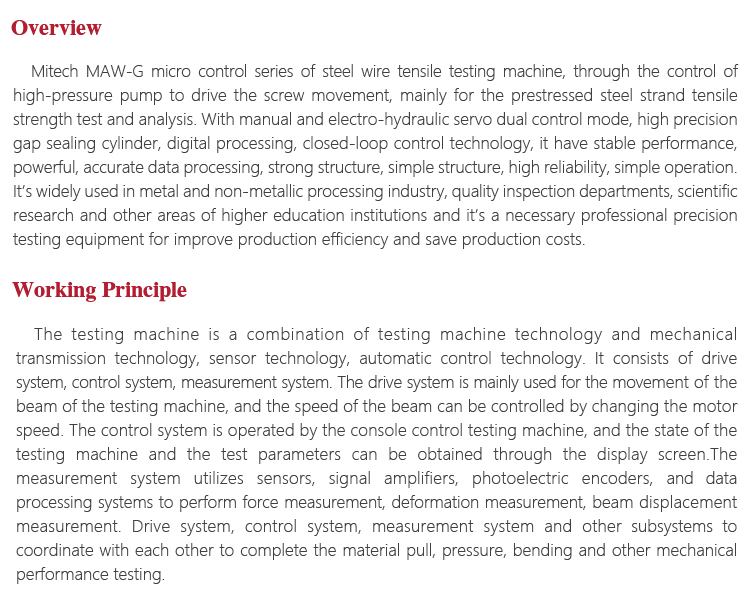

Product OverviewMitech MAW-G micro control series of steel wire tensile testing machine, through the control of high-pressure pump to drive the screw movement, mainly for the prestressed steel strand tensile strength test and analysis. With manual and electro-hydraulic servo dual control mode, high precision gap sealing cylinder, digital processing, closed-loop control technology, it have stable performance, powerful, accurate data processing, strong structure, simple structure, high reliability, simple operation. It’s widely used in metal and non-metallic processing industry, quality inspection departments, scientific research and other areas of higher education institutions and it’s a necessary professional precision testing equipment for improve production efficiency and save production costs.

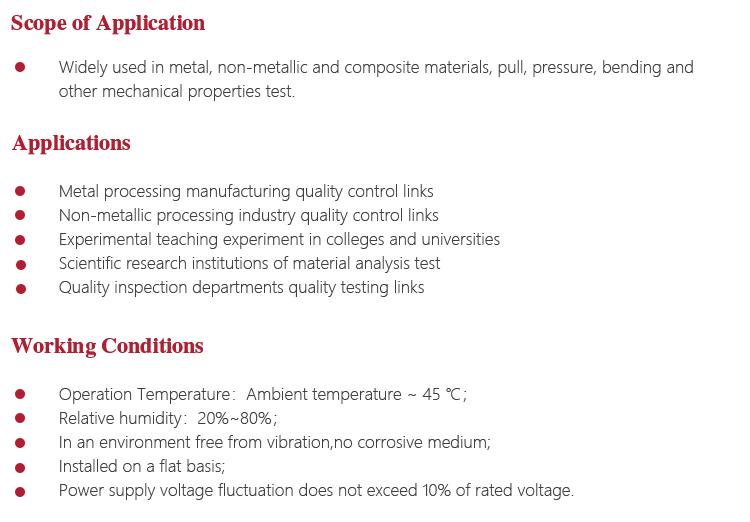

Function & applicationl Metal processing manufacturing quality control links
l Non-metallic processing industry quality control links
l Experimental teaching experiment in colleges and universities.
l Scientific research institutions of material analysis test
l Quality inspection departments quality testing links
Working PrincipleThe testing machine is a combination of testing machine technology and mechanical transmission technology, sensor technology, automatic control technology. It consists of drive system, control system, measurement system. The drive system is mainly used for the movement of the beam of the testing machine, and the speed of the beam can be controlled by changing the motor speed. The control system is operated by the console control testing machine, and the state of the testing machine and the test parameters can be obtained through the display screen.The measurement system utilizes sensors, signal amplifiers, photoelectric encoders, and data processing systems to perform force measurement, deformation measurement, beam displacement measurement. Drive system, control system, measurement system and other subsystems to coordinate with each other to complete the material pull, pressure, bending and other mechanical performance testing
Working Conditions<!--[if !supportLists]-->l <!--[endif]-->Operation Temperature：Ambient temperature ~ 45 ℃；
<!--[if !supportLists]-->l <!--[endif]-->Relative humidity：20%~80%；
<!--[if !supportLists]-->l <!--[endif]-->In an environment free from vibration,no corrosive medium.
<!--[if !supportLists]-->l <!--[endif]-->Installed on a flat basis.
<!--[if !supportLists]-->l <!--[endif]-->Power supply voltage fluctuation does not exceed 10% of rated voltage.

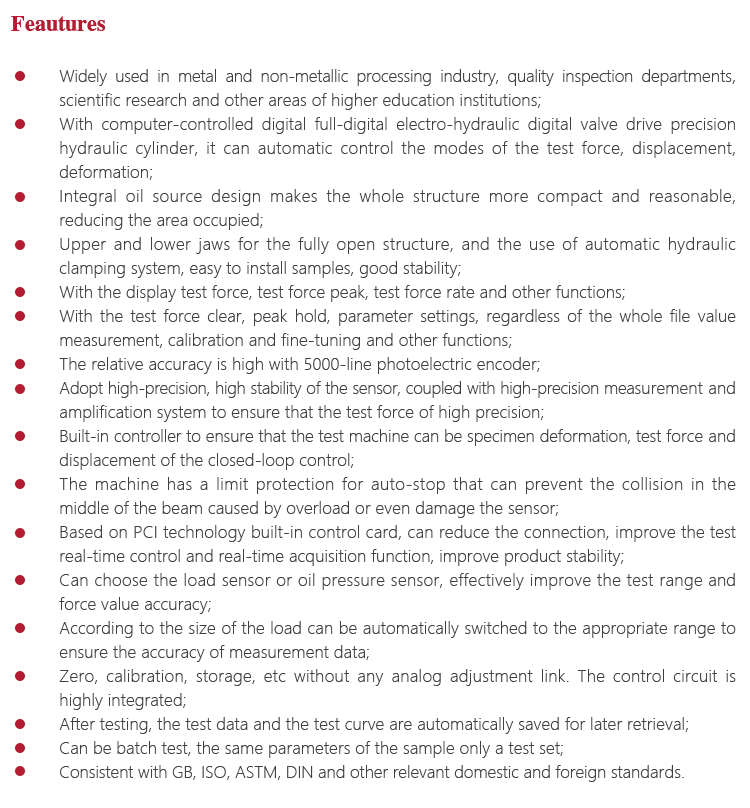

Instrument Featuresl Widely used in metal and non-metallic processing industry, quality inspection departments, scientific research and other areas of higher education institutions;
l With computer-controlled digital full-digital electro-hydraulic digital valve drive precision hydraulic cylinder, it can automatic control the modes of the test force, displacement, deformation.
l Integral oil source design makes the whole structure more compact and reasonable, reducing the area occupied;
l Upper and lower jaws for the fully open structure, and the use of automatic hydraulic clamping system, easy to install samples, good stability;
l With the display test force, test force peak, test force rate and other functions;
l With the test force clear, peak hold, parameter settings, regardless of the whole file value measurement, calibration and fine-tuning and other functions;
l The relative accuracy is high with 5000-line photoelectric encoder.
l Adopt high-precision, high stability of the sensor, coupled with high-precision measurement and amplification system to ensure that the test force of high precision;
l Built-in controller to ensure that the test machine can be specimen deformation, test force and displacement of the closed-loop control;
l The machine has a limit protection for auto-stop that can prevent the collision in the middle of the beam caused by overload or even damage the sensor;
l Based on PCI technology built-in control card, can reduce the connection, improve the test real-time control and real-time acquisition function, improve product stability;
l Can choose the load sensor or oil pressure sensor, effectively improve the test range and force value accuracy;
l According to the size of the load can be automatically switched to the appropriate range to ensure the accuracy of measurement data;
l Zero, calibration, storage, etc without any analog adjustment link. The control circuit is highly integrated;
l After testing, the test data and the test curve are automatically saved for later retrieval;
l Can be batch test, the same parameters of the sample only a test set
l Consistent with GB, ISO, ASTM, DIN and other relevant domestic and foreign standards.

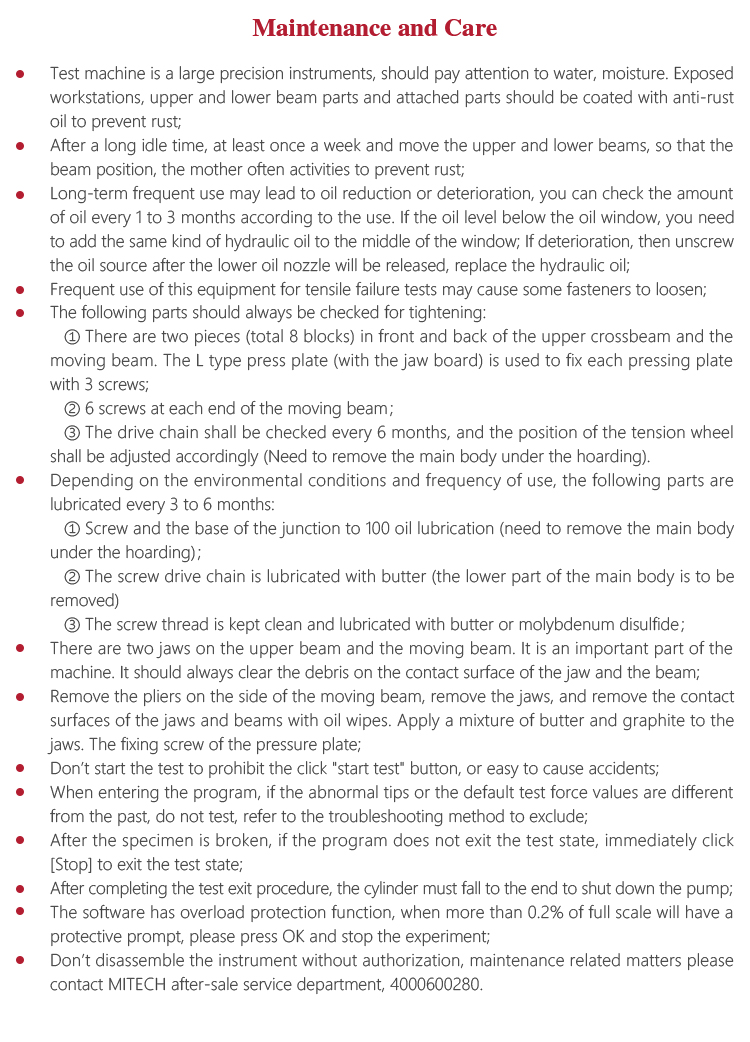

Operating Method and AttentionsInstrument Maintenancel Test machine is a large precision instruments, should pay attention to water, moisture. Exposed workstations, upper and lower beam parts and attached parts should be coated with anti-rust oil to prevent rust;
l After a long idle time, at least once a week and move the upper and lower beams, so that the beam position, the mother often activities to prevent rust;
l Long-term frequent use may lead to oil reduction or deterioration, you can check the amount of oil every 1 to 3 months according to the use. If the oil level below the oil window, you need to add the same kind of hydraulic oil to the middle of the window; If deterioration, then unscrew the oil source after the lower oil nozzle will be released, replace the hydraulic oil;
l Frequent use of this equipment for tensile failure tests may cause some fasteners to loosen. The following parts should always be checked for tightening:
①There are two pieces (total 8 blocks) in front and back of the upper crossbeam and the moving beam. The L type press plate (with the jaw board) is used to fix each pressing plate with 3 screws.
②6 screws at each end of the moving beam；
③The drive chain shall be checked every 6 months, and the position of the tension wheel shall be adjusted accordingly (Need to remove the main body under the hoarding).
l Depending on the environmental conditions and frequency of use, the following parts are lubricated every 3 to 6 months:
①Screw and the base of the junction to 100 oil lubrication (need to remove the main body under the hoarding)；
②The screw drive chain is lubricated with butter (the lower part of the main body is to be removed)
③The screw thread is kept clean and lubricated with butter or molybdenum disulfide；
l There are two jaws on the upper beam and the moving beam. It is an important part of the machine. It should always clear the debris on the contact surface of the jaw and the beam. Remove the pliers on the side of the moving beam, remove the jaws, and remove the contact surfaces of the jaws and beams with oil wipes. Apply a mixture of butter and graphite to the jaws. The fixing screw of the pressure plate;
l Don’t start the test to prohibit the click "start test" button, or easy to cause accidents;
l When entering the program, if the abnormal tips or the default test force values are different from the past, do not test, refer to the troubleshooting method to exclude;
l After the specimen is broken, if the program does not exit the test state, immediately click [Stop] to exit the test state;
l After completing the test exit procedure, the cylinder must fall to the end to shut down the pump;
l The software has overload protection function, when more than 0.2% of full scale will have a protective prompt, please press OK and stop the experiment
l Don’t disassemble the instrument without authorization, maintenance related matters please contact MITECH after-sale service department, 4000600280
-
-

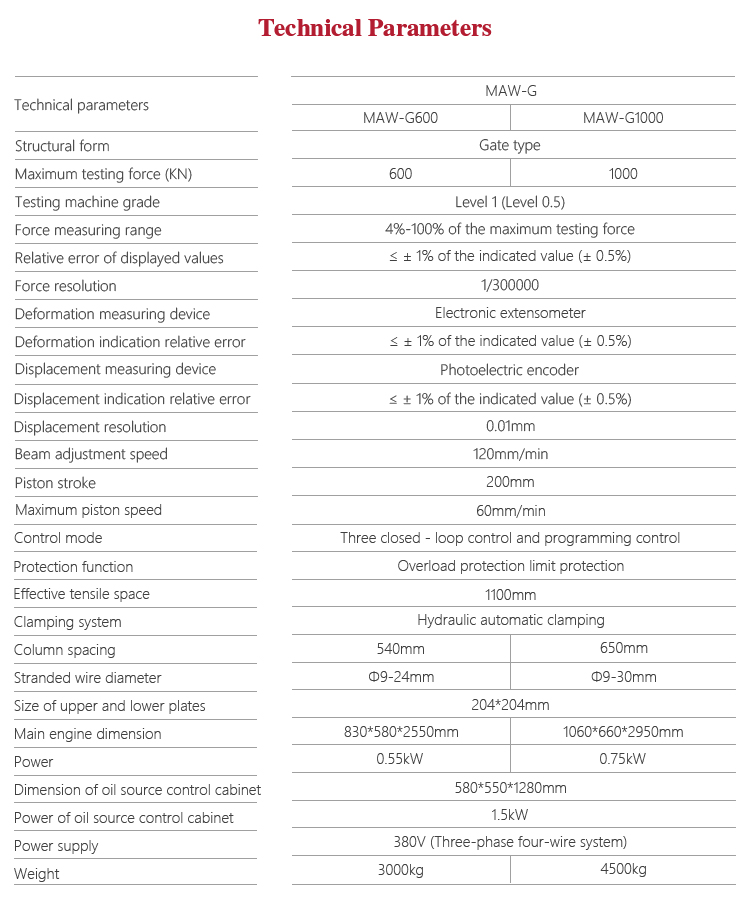

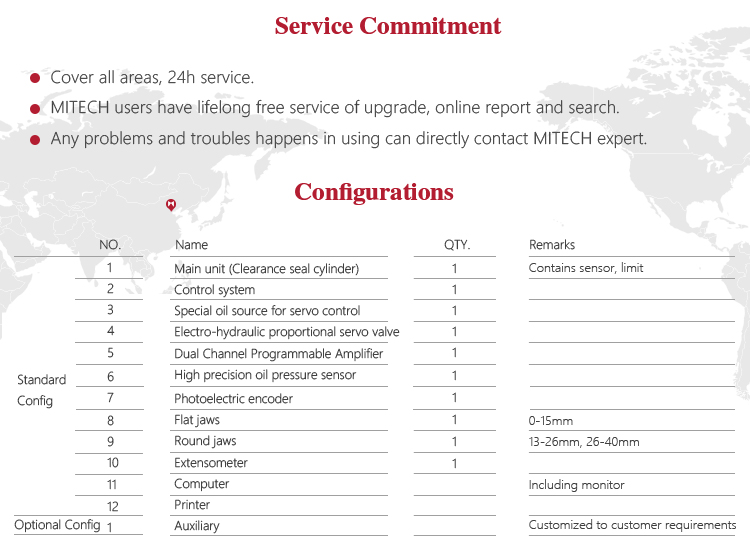

Structural form Gate type Maximum testing force (KN) 600 Testing machine grade Level 1 (Level 0.5) Force measuring range 4%-100% of the maximum testing force Relative error of displayed values ≤ ± 1% of the indicated value (± 0.5%) Force resolution 1/300000 Deformation measuring device Electronic extensometer Deformation indication relative error ≤ ± 1% of the indicated value (± 0.5%) Displacement measuring device Photoelectric encoder Displacement indication relative error ≤ ± 1% of the indicated value (± 0.5%) Displacement resolution 0.01mm Beam adjustment speed 120mm/min Piston stroke 200mm Maximum piston speed 60mm/min Control mode Three closed - loop control and programming control Protection function Overload protection, limit protection. Effective tensile space 1100mm Clamping system Hydraulic automatic clamping Column spacing 540mm Stranded wire diameter Φ9-24mm Size of upper and lower plates 204*204mm Main engine dimension 830*580*2550mm Power 0.55kW Dimension of oil source control cabinet 580*550*1280mm Power of oil source control cabinet 1.5kW Power supply 380V (Three-phase four-wire system) Weight 3000kg -
-
