MITECH MVD series portable industrial endoscope
Mitech
Detecting Line length: 1.5m，3m, 6m
8G ; MINI-USB port
>4h
960g
50.6*46*16cm
6-7kg
Product
Overview
Graphic
Technical
Configuration
Related
Product
- Overview
- Graphic
- Technical
- Configuration
- Related
-

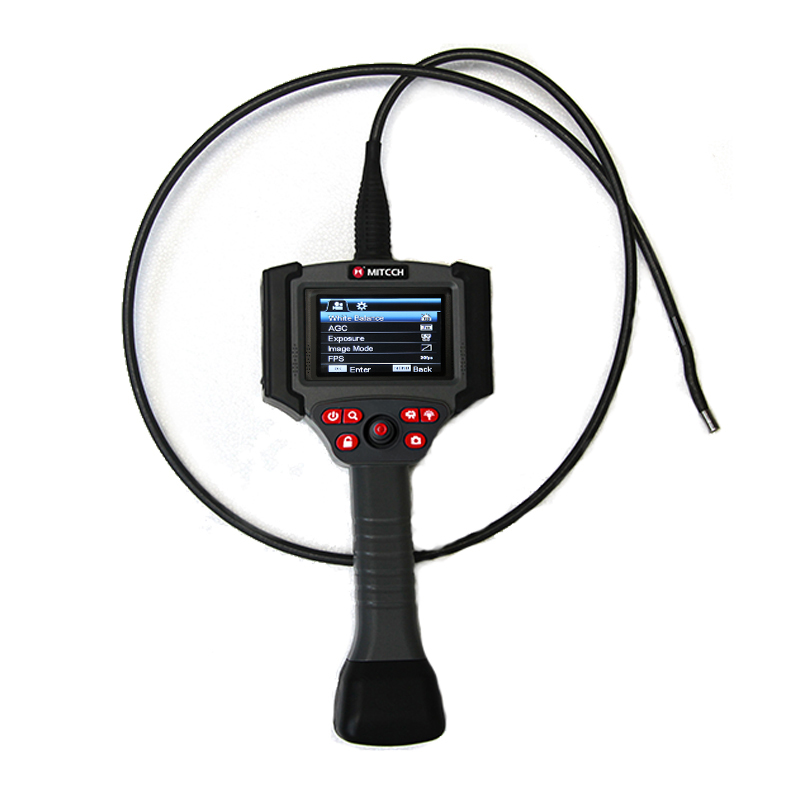

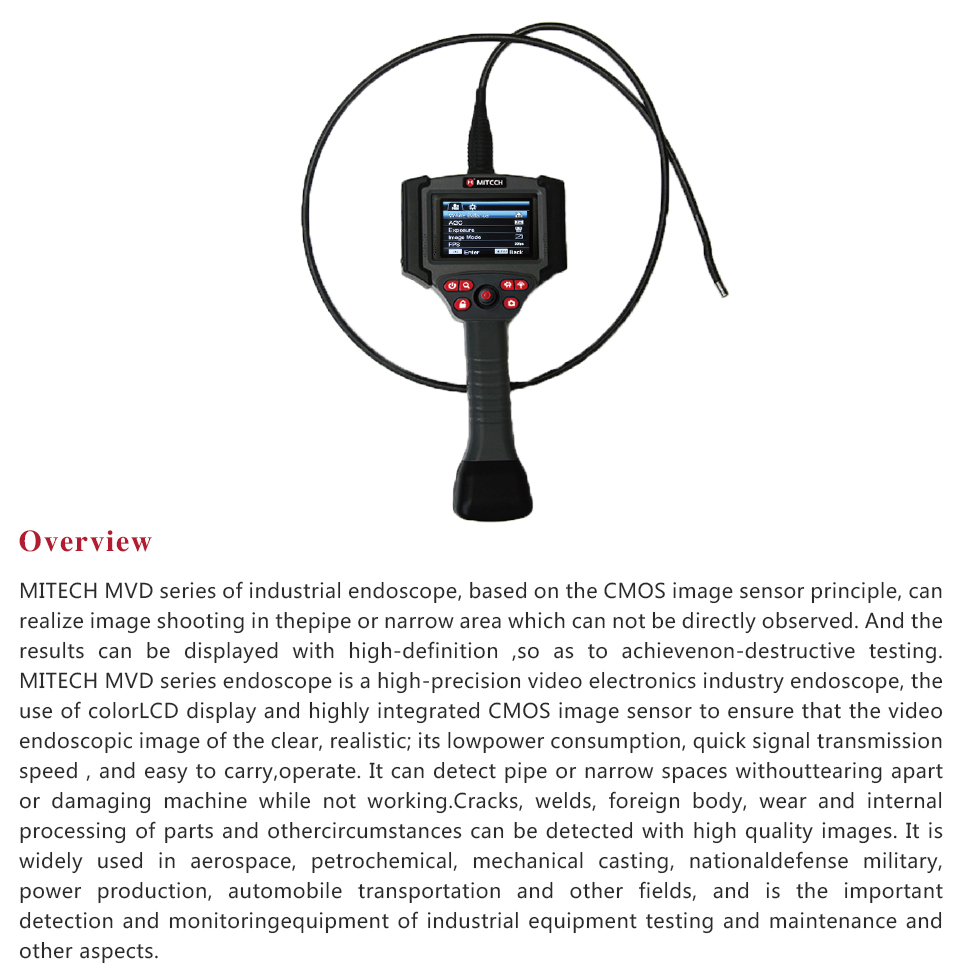

Product OverviewMITECH MVD series of industrial endoscope, based on the CMOS image sensor principle, can realize image shooting in the pipe or narrow area which can not be directly observed. And the results can be displayed with high-definition ,so as to achieve non-destructive testing. MITECH MVD series endoscope is a high-precision video electronics industry endoscope, the use of color LCD display and highly integrated CMOS image sensor to ensure that the video endoscopic image of the clear, realistic; its low power consumption, quick signal transmission speed , and easy to carry,operate. It can detect pipe or narrow spaces without tearing apart or damaging machine while not working.Cracks, welds, foreign body, wear and internal processing of parts and other circumstances can be detected with high quality images. It is widely used in aerospace, petrochemical, mechanical casting, national defense military, power production, automobile transportation and other fields, and is the important detection and monitoring equipment of industrial equipment testing and maintenance and other aspects.

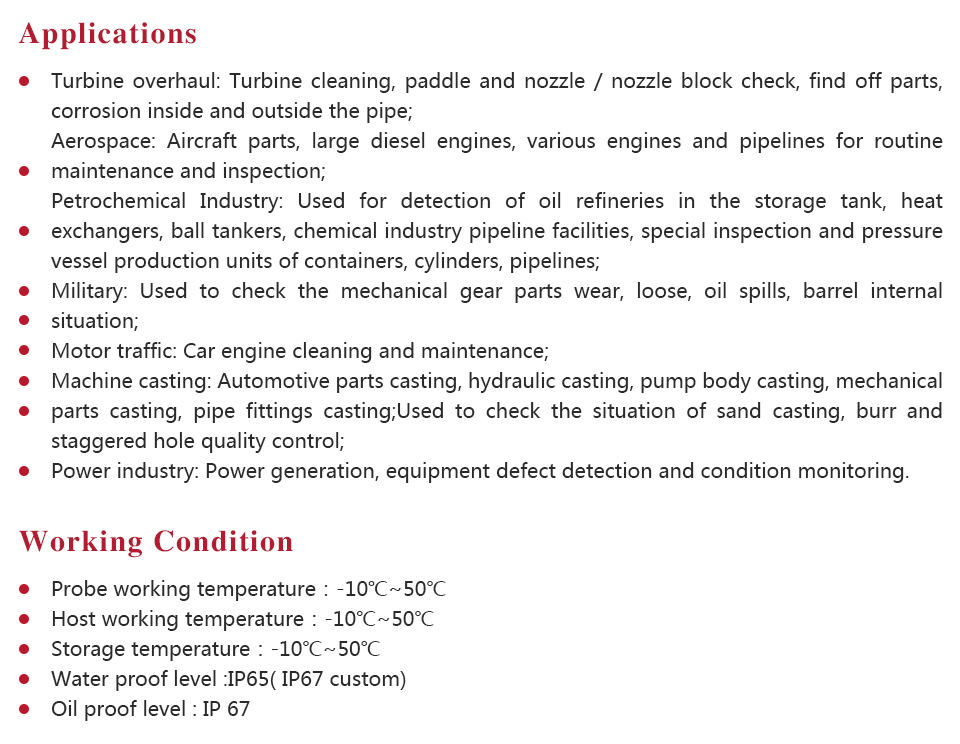

Function & applicationl Turbine overhaul: Turbine cleaning, paddle and nozzle / nozzle block check, find off parts, corrosion inside
and outside the pipe;
l Aerospace: Aircraft parts, large diesel engines, various engines and pipelines for routine maintenance and
inspection;
l Petrochemical Industry: Petrochemical IndustryUsed for detection of oil refineries in the storage tank, heat
exchangers, ball tankers, chemical industry pipeline facilities, special inspection and pressure vessel
production units of containers, cylinders, pipelines;
l Military: Used to check the mechanical gear parts wear, loose, oil spills, barrel internal situation;
l Motor traffic: Car engine cleaning and maintenance;
l Machine casting: Automotive parts casting, hydraulic casting, pump body casting, mechanical parts casting,
pipe fittings casting;Used to check the situation of sand casting, burr and staggered hole quality control;
l Power industry: Power generation, equipment defect detection and condition monitoring.

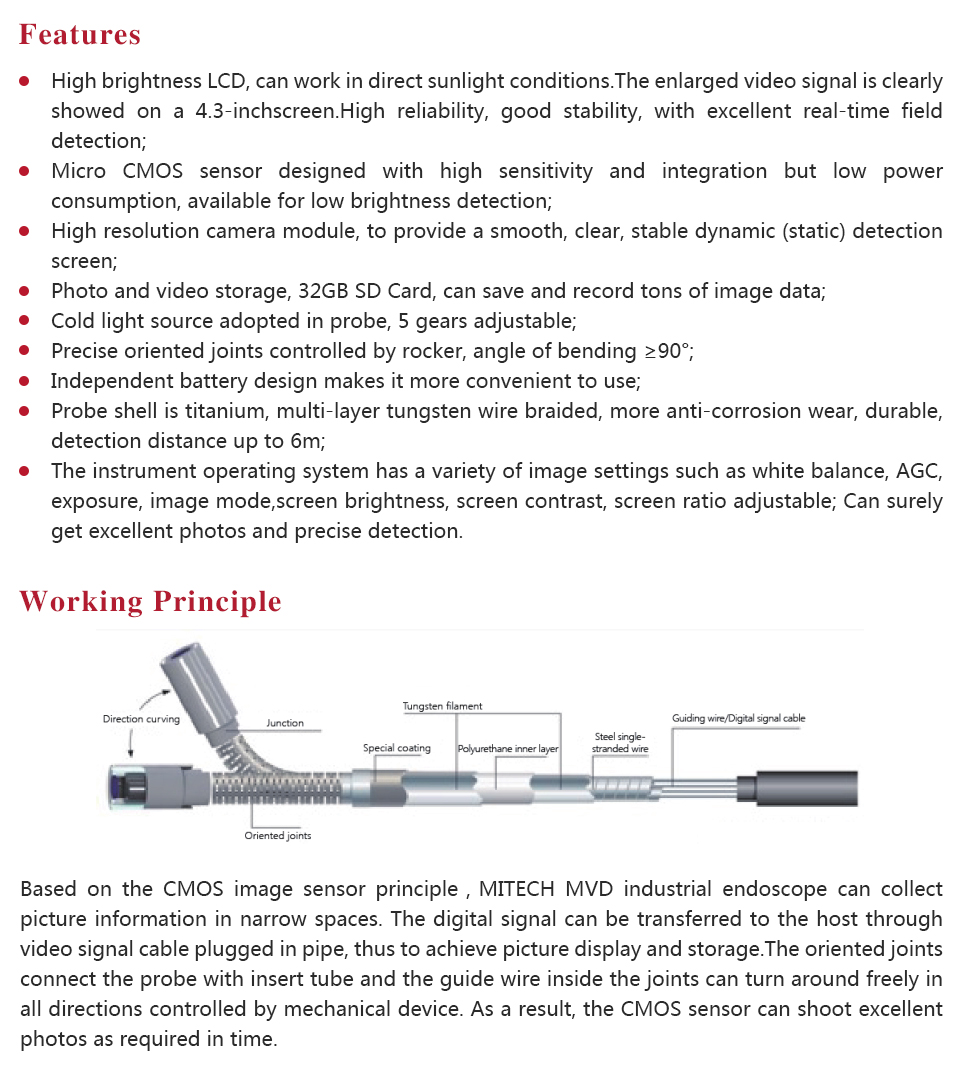

Working PrincipleBased on the CMOS image sensor principle，MITECH MVD industrial endoscope can collect picture information in narrow spaces. The digital signal can be transferred to the host through video signal cable plugged in pipe, thus to achieve picture display and storage.The oriented joints connect the probe with insert tube and the guide wire inside the joints can turn around freely in all directions controlled by mechanical device. As a result, the CMOS sensor can shoot excellent photos as required in time.
Working Conditionsl Probe working temperature：-10℃~50℃
l Host working temperature：-10℃~50℃
l Storage temperature：-10℃~50℃
l Waterproof level :IP65( IP67 custom)
l Oil proof level : IP67
Instrument Featuresl High brightness LCD, can work in direct sunlight conditions.The enlarged video signal is clearly showed on a
4.3-inch screen.High reliability, good stability, with excellent real-time field detection;
l Micro CMOS sensor designed with high sensitivity and integration but low power consumption, available for low
brightness detection;
l High resolution camera module, to provide a smooth, clear, stable dynamic (static) detection screen;
l Photo and video storage, 8GB SD Card, can save and record tons of image data;
l Cold light source adopted in probe, 5 gears adjustable;
l Precise oriented joints controlled by rocker, angle of bending ≥90°;
l Independent battery design makes it more convenient to use;
l Probe shell is titanium, multi-layer tungsten wire braided, more anti-corrosion wear, durable, detection
distance up to 6m;
l The instrument operating system has a variety of image settings such as white balance, AGC, exposure, image
mode, screen brightness, screen contrast, screen ratio adjustable; Can surely get excellent photos and precise
detection.
Operating Method and AttentionsMeasurement
1 Boot
By pressing this key for 3 seconds it will boot or shut down(with a warning tone).Press the light adjusting key to open the LED light source, the display shows the current sensor camera shooting picture, and the instrument enters the normal measurement state.
2 Locate
Long press Lock/reset button to make the probe straight and insert it into the body to the right position;
Adjusting the oriented joints to get the right angle to shoot；
Press the Lock key to confirm position, at this time you can also fine tuning by controlling the joystick;
Adjust the brightness and zoom key to get the best image shooting;
During the process of getting to the right position, user have to make sure not to damage the sensor by adjusting the probe direction.
3 Picture and video shooting
After shooting position confirmed, you can take photos or video.
Video: By pressing this key it will start video shooting; Press it again it will stop; The recorded video will be stored in the SD card;
Photo: By pressing this key it will start to take photo;The recorded picture will be stored in the SD card;
4 Detection finishing
Long press the Lock key to make the probe straight and pull the line out of the body. Shut down the instrument.
5 Instrument storage
After the measurement,user should take out the battery and use a professional lens cloth to wipe the sensor lens.Afterwards put on the protective cover, the instrument and other components in turn into the ABS case,and the test line should be coiled in the box.
6 Charging
There are two ways of power supplying. One is to connect the AC adapter to the power supply port without battery. The other is battery charging port to charge. You can also take out the battery and charge in seat.
After booting , if the screen shows “Please change battery”, it means the battery is dying and you need to change another or connect to AC 220V. The instruction light being red and screen icons being red means charging on; and it will be fully charged within 5h. Avoid over charging in case there may be battery damage. The instrument can still work properly while charging , so as to improve working efficiency.
Instrument MaintenanceMaintenance and care
Don’t use the instrument if the temperature is not in -10°C～50°C in case that you may damage the probe;
Do not use or place the product in a corrosive environment；
Do not expose the product to rain. Do not place the probe in a liquid for a long time
Do not place the product near strong magnetic objects；
Do not use it if there is too much dust in the environment；
Keep the body clean and avoid scratching the screen；
Do not attempt to disassemble the product yourself. The repairing service is limited by the original authorized staff；
Do not operate the joystick while the wire is in circle in case it being damaged；
While shooting , make sure the brightness is OK and probe should be stable;
Before using, you should check if the battery is in or about to die；
After use, adjust the joystick to make joints straight and then pull out. Avoid pulling hard because that may lead to damage to the probe;
After use, do not soak the product, the soft cloth can be used to clean the probe and mirror host, and then into the ABS case, so as not to cause corrosion or damage to the instrument;
The mirror and monitor are not allowed to be squeezed, impacted to prevent unnecessary damage. When the device is not in use, be sure to remove the battery to prevent damage to the battery and corrode the instrument. -
-

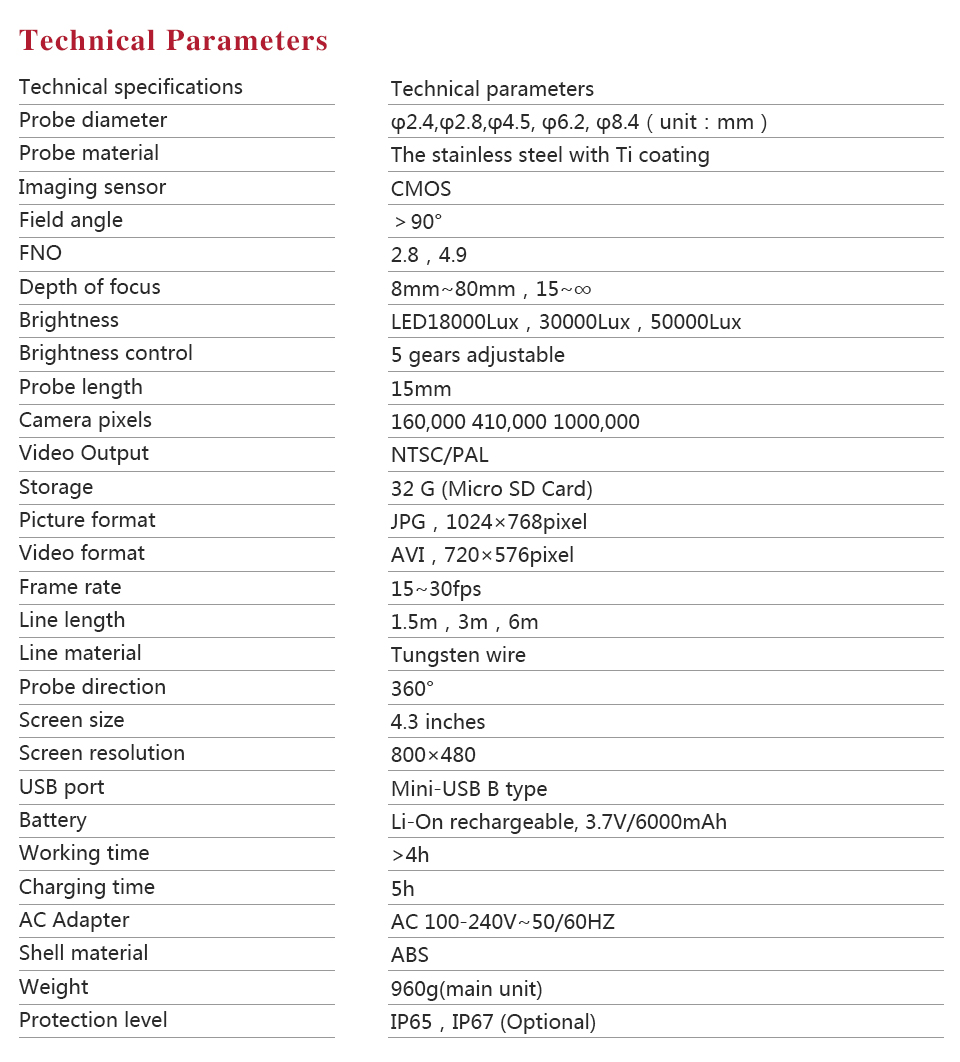

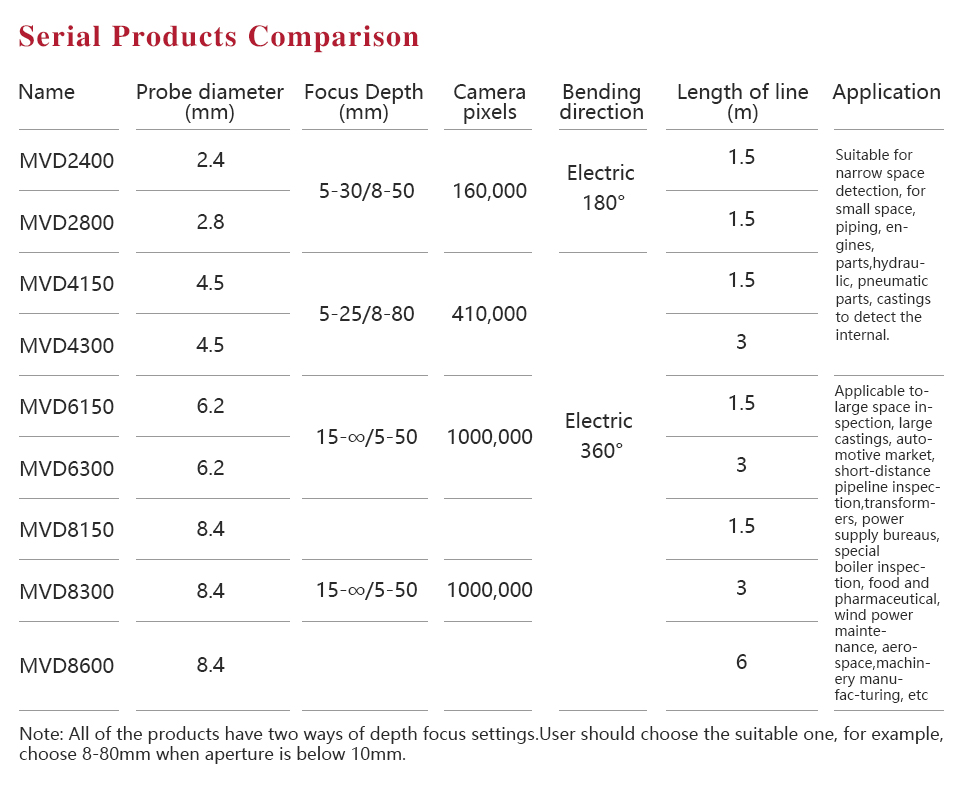

Protection level IP65，IP67 (Optional) Weight 960g (main unit) Shell material ABS AC Adapter AC 100-240V~50/60HZ Charging time 5h Working time >4h Battery Li-On rechargeable, 3.7V/6000mAh USB port Mini-USB B type Screen resolution 800×480 Screen size 4.3 inches Probe direction 360° Line material Tungsten?wire Line length 1.5m，3m，6m Frame rate 15~30 fps Video format AVI，720×576pixel Picture format JPG，1024×768pixel Storage 32G (Micro SD Card) Video Output NTSC/PAL Camera pixels 350,000 410,000 440,000 1,000,000 Probe length 15 mm Brightness control 5 gears adjustable Brightness LED18000Lux，30000Lux，50000Lux Depth of focus 8mm~80mm，15~∞ FNO 2.8，4.9 Field angle ＞90° Imaging sensor CMOS Probe material The stainless steel with Ti coating Probe diameter ?4.5, ?6.2, ?8.4（unit：mm） -

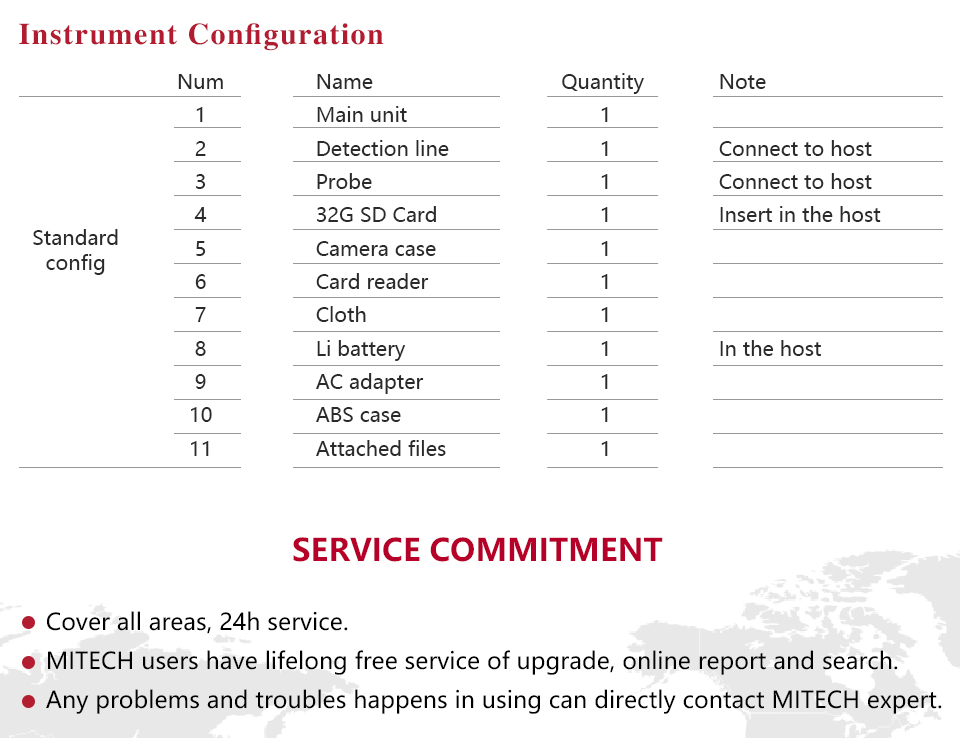

MVD main unit MITECH MVD series of industrial electronic endoscope, built-in CMOS high sensitivity image sensor, the highest imaging pixels up to 100 million, clear and stable.Also designed with three different detecting line(1.5m, 3m, 6m),matched with 4.5mm, 6.2mm, 8.4mm three kinds of probes that can adapt to different sizes of aperture and detection length requirements. The instrument weights 960g and is the standard configuration of MVD industrial endoscope.It is mainly used to detect corrosion, cracks, welds, foreign objects, wear and internal processing of various industrial pipelines or complex and small equipment. It is an important detection and monitoring instrument in the detection and maintenance of industrial equipment.8G SD Card MITECH 8G SD Card is also standard configuration of MVD built in main unit.It is mainly used for real-time storage of image and video. It effectively meets the needs of information collection and storage while detecting. It is a necessary part of the instrument. Camera Case Heat-resistant rubber material adopted, MITECH MVD camera case is standard configuration whose size varies according to user need.When the instrument is in the off state ,it can effectively protect the instrument image sensor lens to avoid water stains, dust, oil and other impurities into the pollution lens damage to the instrument.Also is to ensure that the instrument lens work being safe.Cloth MITECH cloth , size of 180mm×180mm, also standard config, is uesed to clean up the camera after use. Attached Files Mitech Industrial Endoscope with customized packing documents including product certificate, warranty card, product manual, packing list. The packing documents had used the special printed paper. The manual is with graphic design, beautiful, easy to understand, easy to save for a long time.For more e-edition information of it, you can log in www.gcuvbwo08.cn to download.ABS Instrument Case It is made of ABS engineering plastic sealed waterproof, anti-throw shock, heat resistance, low temperature resistance and other excellent properties, which can effectively defense in the severe environment pollution, dust and all kinds of corrosion, measures for air, train carrying standard (can be put under the seat and in the rack), small and convenient can be placed in the backpack, safe, reliable and stable. Lithium Battery Charging time 5h, the output voltage of 3.7V, MITECH MVD series of industrial endoscopy lithium battery with low power design concept design, long standby. AC Adapter AC 100-240V~50/60HZ，can be used to charge for the battery or simply for power supply of the instrument. -
